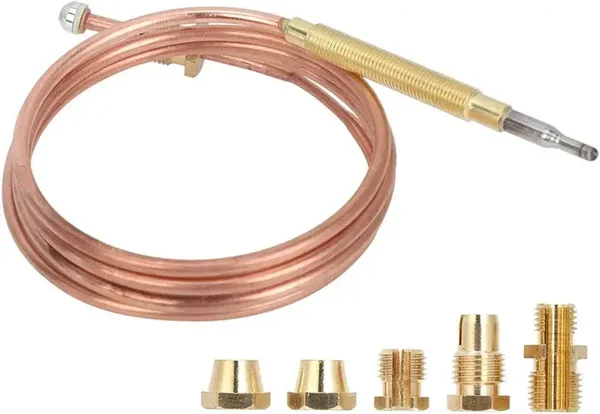

Universal thermocouple 1200mm

High quality construction

Covers the replacement needs of most appliances found in the market

Compatible with many types of controls and pilot burners

Simple design for ease of installation

The Universal Thermocouple 1200mm (120cm) is a versatile safety device for gas appliances, including ovens, stoves, heaters, deep fryer and fireplaces. It functions as a flame failure safety sensor, detecting flame presence and cutting off gas supply if the flame goes out, preventing hazardous leaks. It acts as a crucial, often universal replacement for 90%+ of market needs.

Key Features & Description:

Length: 1200mm (120cm) is a standard, versatile length for many gas applications.

Safety Function: Detects heat; if no heat (flame out), it breaks the circuit, prompting the gas valve to close.

Universal Compatibility: Designed to fit most domestic and commercial appliances (e.g., Miele ovens, Bromic controllers).

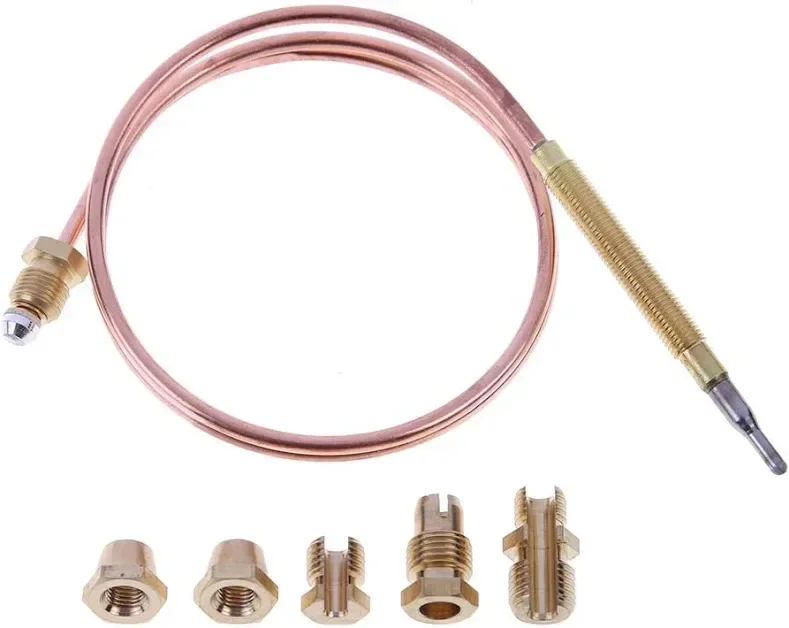

Included Fittings: Typically comes with 5 different thread adapters (including M8, M9, M10, 11/32" or conical nuts) to match standard gas valve connections.

Technical Spec: Often features an open circuit voltage of 30 mV and a 30-second maximum shutdown time.

Installation: It is recommended that this part be installed by a qualified gas fitter.
